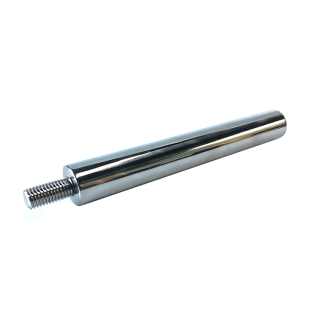

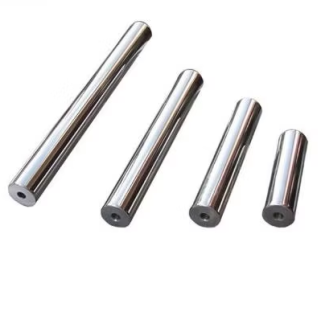

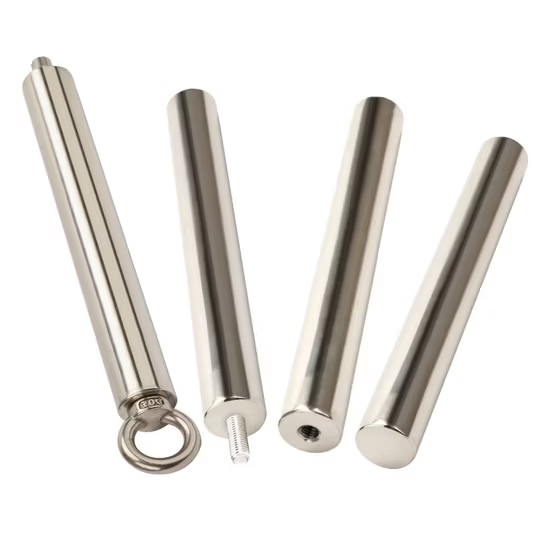

Strong Magnetic Rod Filter for Powder and Liquid Separation
Brand: magnet forever
Product origin: china
Delivery time: 35 days
Supply capacity: 100000 pieces/month
High-intensity magnetic force for efficient ferrous contamination removal
Made with powerful NdFeB magnets for superior separation performance
Stainless steel housing (SS304/SS316) for corrosion resistance and hygiene
Suitable for both dry powder and liquid filtration applications
Smooth surface finish for easy cleaning and maintenance
Customizable size, magnetic strength, and temperature resistance
Long service life with stable magnetic performance
Ideal for food, chemical, plastic, and pharmaceutical industries
Product Specifcations
The magnetic bar separator is a highly efficient solution designed for removing ferrous contaminants from powders, granules, and liquid materials. This magnetic rod is manufactured using high-performance NdFeB magnets enclosed in a durable stainless steel tube, ensuring strong magnetic force and long-lasting performance.
The magnetic rod filter can be easily installed in hoppers, chutes, pipelines, or processing equipment, effectively capturing iron particles and improving product purity. Its smooth stainless steel surface allows for quick cleaning, making it suitable for industries with strict hygiene requirements.
Widely used in food processing, plastics, chemicals, pharmaceuticals, and recycling industries, this industrial magnetic separator helps protect equipment, improve product quality, and ensure compliance with safety standards.

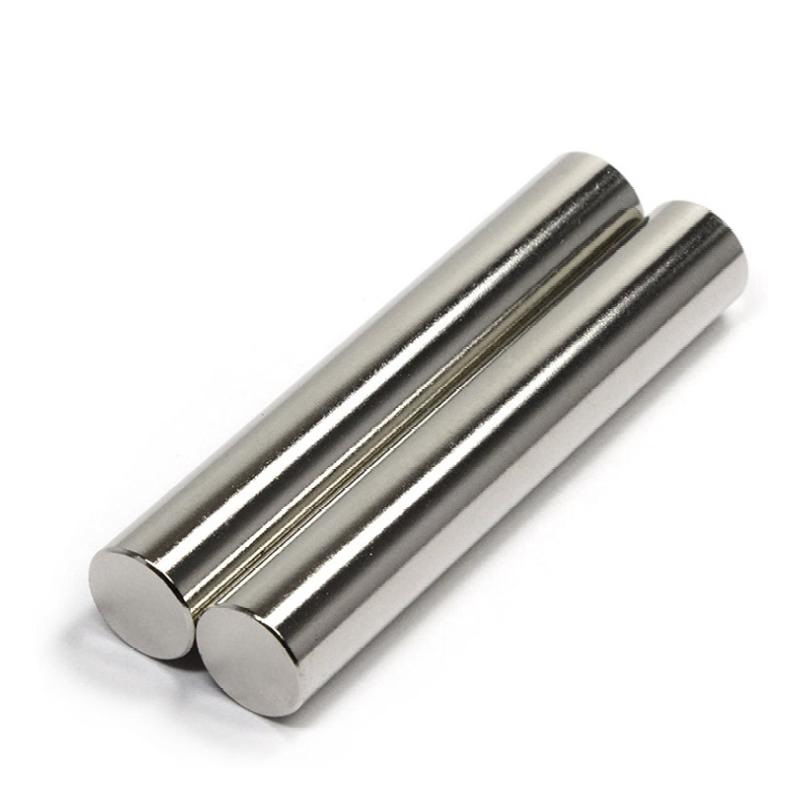

| Name | Magnetic Bar |
| Length | 100–1000 mm (customizable) |
| Diameter | 12mm / 16mm / 19mm / 25mm / Custom |
| Surface Gauss | 2000–12000 Gauss |
Custom Details
Size & Dimensions: Diameter and length can be customized (standard: 12–25 mm, length up to 1000 mm)
Magnetic Strength: Surface Gauss from 2000–12000 GS, adjustable based on application
Material: SS304 or SS316 stainless steel for different environments (food grade available)
Thread Type: M6 / M8 / M10 or custom thread for easy installation
Working Temperature: Standard ≤80°C, high-temperature versions available (up to 350°C)
Surface Finish: Polished or mirror finish for easy cleaning and hygiene compliance
Magnet Grade: N35–N52 or customized magnetic performance

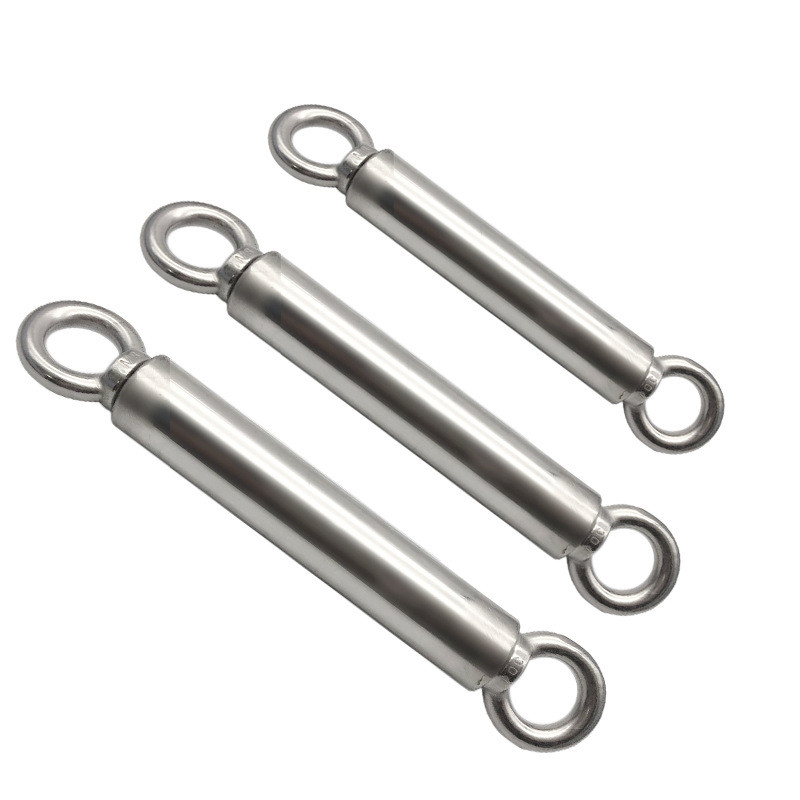

Structure Design: Single rod, threaded ends, waterproof sealed structure
Packaging: Custom packaging, labeling, and private branding available
Customization Capabilities
Factory
The magnet production process begins with raw material melting, where rare earth materials are alloyed to form NdFeB magnetic alloys. The alloy is then processed through hydrogen decrepitation and fine powder milling to produce uniform magnetic powder. Next, the powder is shaped using magnetic field pressing, followed by high-temperature vacuum sintering to achieve the required magnetic strength. After sintering, magnets undergo precision cutting, grinding, and machining to achieve accurate sizes and tolerances.
To ensure durability and corrosion resistance, the magnets are treated with various surface coatings such as nickel (Ni-Cu-Ni), epoxy, zinc, or custom coatings. Finally, each batch undergoes strict magnetic performance testing, dimensional inspection, and quality control procedures before packaging and shipment.
With stable production capacity, advanced equipment, and strict quality management, we are able to provide custom magnet solutions, OEM/ODM services, and consistent supply for global B2B customers.
To ensure stable magnetic performance and consistent product quality, our factory is equipped with a complete set of professional magnetic testing and inspection equipment. Each batch of magnets is strictly tested during production and before shipment.
Our testing equipment mainly includes:
Gauss Meter – used to measure the surface magnetic flux density of magnets to ensure stable magnetic strength.
Fluxmeter – used to measure the total magnetic flux of permanent magnets and verify magnetic performance.
Helmholtz Coil Testing System – used to test magnetic properties such as Br (remanence), Hc (coercivity), and energy product of NdFeB magnets.
Pull Force Tester – used to test the magnetic holding force and ensure the magnets meet application requirements.
Salt Spray Test Machine – used to test corrosion resistance of surface coatings such as Ni-Cu-Ni or epoxy.
Hardness Tester – used to inspect coating hardness and durability.
Dimensional Inspection Tools – including digital calipers, micrometers, and projectors to ensure accurate product dimensions.
With these advanced inspection instruments, we are able to maintain strict quality control from raw materials to finished magnets, ensuring reliable performance for industrial, electronic, and consumer applications.
