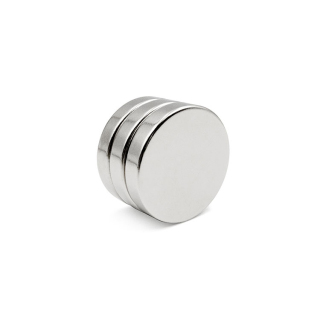

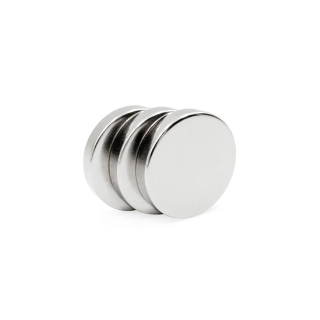

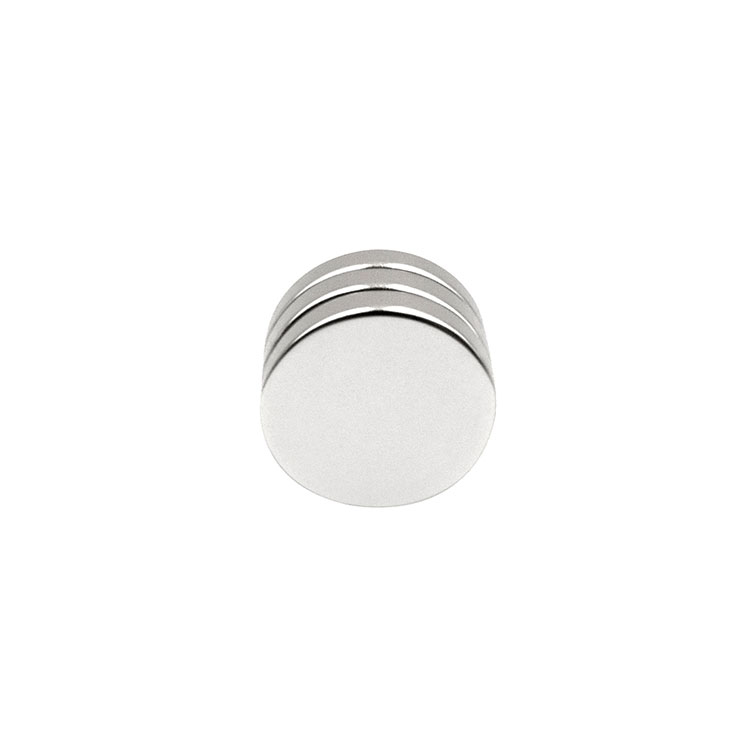

Small Thin Round Flat Strong Magnets
Brand: magnet forever
Product origin: china
Delivery time: 35 days
Supply capacity: 120T/month
Neodymium magnets are easy to process.
The neodymium magnet is by far the strongest magnet, which means that it can achieve a higher magnetic field with a smaller volume and thickness.
It is the development of electronic devices to be more miniaturized.
Small Thin Round Flat Strong Magnets
Small Neodymium Magnets have the characteristics of high remanence, high coercivity and high energy.
Because the magnetic force of the small magnet is very strong, the neodymium magnet can be made smaller and thinner under the same magnetic field strength, which is more conducive to the miniaturization of motors, speakers, and electronic components.
Neodymium Magnets are easily formed into various sizes and shapes, ring, rectangular, segmental or customized according to customer requirements.
Small Neodumium Magnet has been widely used in new energy vehicles, mini motors, mini Speaker, consumer electronics, electronic information,
In 2009, Magnet Forever began to produce Rare Earth Magnets. After more than ten years of development, the current production capacity has reached 120 tons/month.
Product Parameters:
Grade:N35-N58,- M - H - SH - UH - EH-AH.
Br:11.7-16 KGS
Hcj:12-30 KOe
(BH)Max:33-60 MGOe
Operating temperature:-60-220 °C
Neodymium magnets are all graded by the material they are made of. As a very general rule, the higher the grade (the number following the 'N'), the stronger the magnet. The highest grade of neodymium magnet currently available is N58. Any letter following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet
is standard temperature neodymium. The temperature ratings are standard (no designation) - M - H - SH - UH - EH-AH.
Quality Control:
Cost Of Poor Quality:<2.5%
On-Time Delivery:100%
Custom Satisfaction:>98%
Delivery (ppm)<900
Delivery (ppm)<35 (for automobile customer)
Rare Earth Magnet Series & Custom Size
Neodymium Magnets are very easy to machine, and we can customize the product size according to our needs.
With the continuous update of technology, the surface of the product can be electroplated with NI, Zn, epoxy, nano-coating, Teflon, etc.
Magnetization direction:
Magnet performance parameter :
