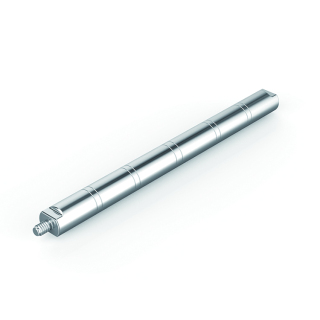

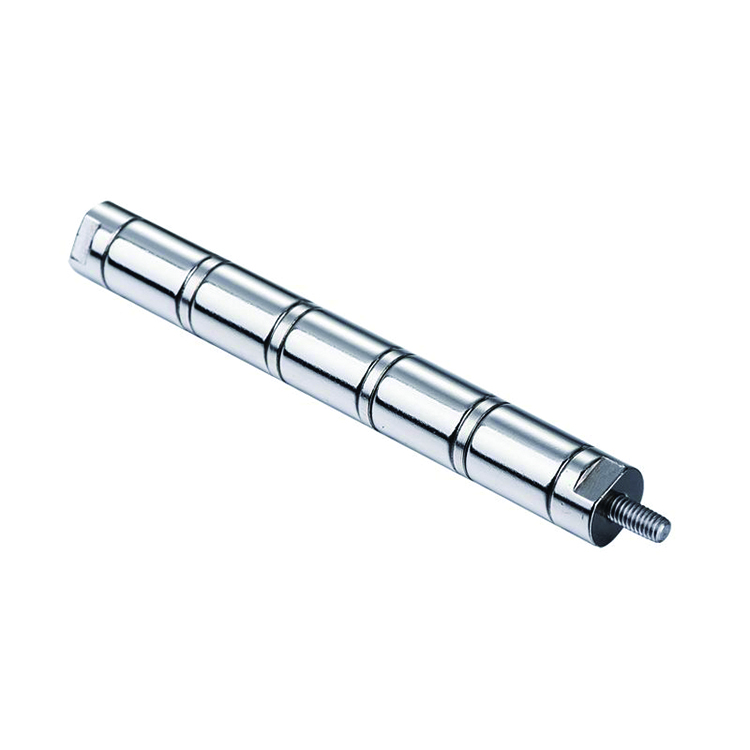

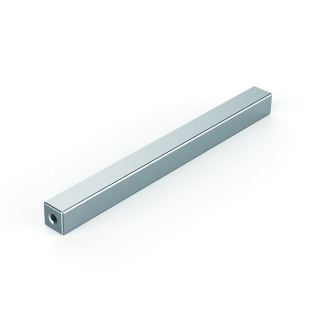

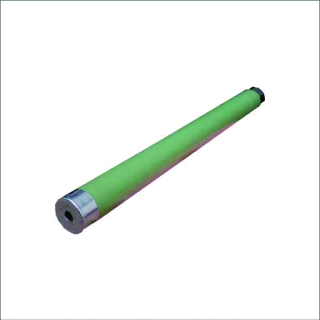

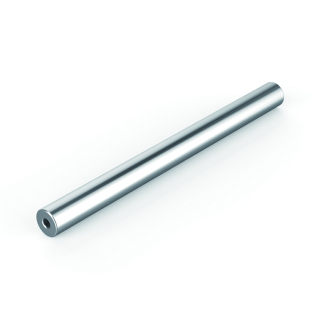

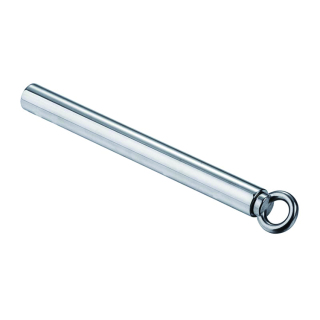

Neodymium Rod Magnets

Brand: magnet forever

Product origin: china

Delivery time: 20 days

Supply capacity: 20000 pieces per month

Neodymium Rod Magnets uses a large number of N52 high-performance magnets to increase the magnetic field strength through different permutations and combinations. The magnetic field strength of the magnet bar can reach 12000GS.
Magnetic rods can be larger in size, even some screening machinery. This gets rid of the limitation of neodymium magnet size to a certain extent.
The magnetic field of the magnetic rod is stronger and larger.

Download:

Neodymium Rod Magnets

Neodymium Rod Magnets

The magnetic rod is a simple and practical magnetic filter with a wide range of applications. It is used to adsorb peripheral ferromagnetic particles to remove iron and protect subsequent equipment.

neodymium rod

neodymium rod magnets

Strong Neodymium Bar Magnets

rod magnets

neodymium rod


The magnetic rod is a simple and practical magnetic filter with a wide range of applications. It is used to adsorb surrounding ferromagnetic particles to remove iron and protect subsequent equipment. You can follow the steps below to design and select a suitable magnet.


Size

Br

>50 um Scrap iron

1500GS

 20-50um Scrap iron

2500GS

Submicron iron filings, weak magnetic particles

5000GS

Fine and weak magnetic powder, rust, etc

10000-20000GS

The magnitude of the magnetic force on the surface of the magnet bar is usually related to three factors:

1. Magnetic line density of magnet surface

2. Magnetic field gradient

3. Weight of adsorbed metal foreign particles


Purpose:

Remove iron impurities from liquid tanks

Used as a quality inspection tool for dry powder materials

Used in work areas where traditional grilles cannot be installed


neodymium rod magnets

rod magnets

neodymium rod


Series of products display:

neodymium rod magnets


rod magnets

neodymium rod

neodymium rod magnets

rod magnetsneodymium rod



We can provide the following services:

-Customize suitable magnetic screening equipment according to the use environment

-New product installation and commissioning

-Control, detection and monitoring of magnetic equipment

-Commissioning of the control system

-Equipment repair service

-Maintenance and replacement of magnetic equipment


Rare earth permanent magnet production process and equipment
Rare earth permanent magnet production process and equipment
Perfect testing equipment and process
Perfect testing equipment and process
