Custom N35 Neodymium Magnets 8x1mm 10x1-5mm Wholesale
Brand: magnet forever
Product origin: china
Delivery time: 35 days
Supply capacity: 100000 pieces/month
N35 Neodymium Magnets
Custom Neodymium Magnets
Small Neodymium Magnets
Multiple Size Options
Wholesale Supply
Product Specifcations
We manufacture small sintered neodymium magnets for OEM products, industrial assemblies and retail magnetic products.
For this series, common sizes include:
D8×1mm, D10×1mm, D10×2mm, D10×3mm, D10×4mm and D10×5mm.
N35 is the standard option for many projects. If the application requires higher magnetic performance, N38, N42, N45, N50 and N52 can also be produced.
Besides these standard dimensions, we manufacture according to customer drawings.
| Material | Sintered NdFeb | |
Grade & Workingtemperature | Grade | Max.Operating Temperature |
| N35-N48 | 80°C(176°F) | |
| N50-N52 | 60° C(160°F) | |
| 35M-50M | 100° C(212° F) | |
| 33H-48H | 120° C(248°F) | |
| 33SH-45SH | 150°C(302°F) | |
| 30UH-40UH | 180°C(356°F) | |
| 28EH-38EH | 200° C(392° F) | |
| 28AH-33AH | 220° C(428° F) | |
| Shape | Disc | |
| Coating | Ni,Ni-Cu-Ni,Zn,Ag.Expoxy,Passivated,etx | |
| Customize | OEM | |

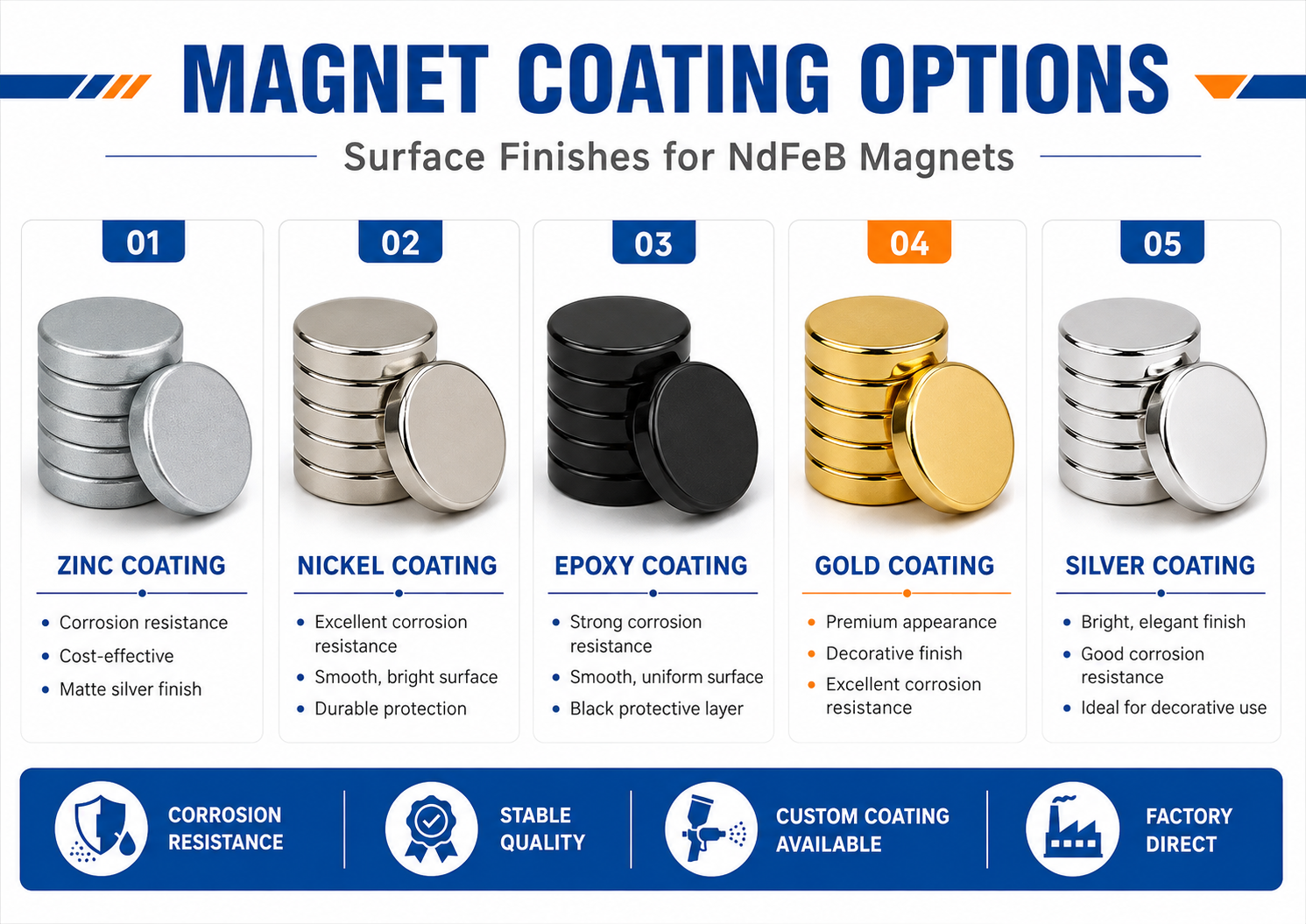

Available Coatings
The standard coating for most neodymium magnets is Ni-Cu-Ni.
Other surface treatments are available depending on the application:
Nickel
Zinc
Epoxy
Gold
Silver
For products used in humid or special environments, please tell us the actual working condition before choosing the coating.
N35 or Higher Grade?
N35 is sufficient for many standard commercial products.
Using N52 does not automatically mean the final product will work better.
For some projects, increasing magnet thickness, changing the magnetic circuit or reducing the air gap may be more effective than simply changing from N35 to a higher grade.
Before quotation, we normally ask about the application if the buyer has a specific force requirement.
This helps avoid unnecessary material cost.
Quality Inspection
We use different inspection methods according to the product and customer requirement.
Our regular inspection includes:
Dimension Inspection
Diameter and thickness are checked during production and before packing.
Appearance Inspection
We check:
Chipping
Cracks
Coating damage
Surface defects
Magnetic Inspection
Finished magnets can be checked using a Gauss meter.
For projects with specific magnetic requirements, the inspection method should be agreed before production.
Pull Force Test
Pull-force testing is available for suitable magnetic products and assemblies.
The test result is only meaningful when the testing conditions are clearly defined.
About Us
Xiamen Magnet Forever Electronic Co., Ltd. has been working in permanent magnets and magnetic assemblies for more than 17 years.
Our factory covers approximately 5,000 square meters and operates 12 production lines.
We manufacture:
Neodymium magnets
Ferrite magnets
Pot magnets
Magnetic assemblies
Custom magnetic components
Our products are supplied to customers in more than 50 countries and regions.
Main export markets include North America and Europe. Based on our current export structure, approximately 40% of business is from North America and 30% from Eastern Europe.
Certifications
For export projects, we can provide related product and compliance documents according to the order requirement.
Available documents include:
SGS REACH report
REACH declaration
Product specification
Material information
Dimensional inspection records
Magnetic inspection data
BH curve data when required
Packing And Shipping
FAQ
What is the MOQ?
There is no single MOQ for all magnet sizes.
MOQ depends on size, grade, coating and whether the product is in stock.
For customized magnets, send us the size and required quantity first. We will check the suitable production quantity.
Can you make D8×1mm and D10×1-5mm?
Yes.D8×1mm and D10×1mm to D10×5mm are within our regular manufacturing range.
Other dimensions can also be produced according to drawing.
Can I buy several sizes in one order?
Yes.
Please list the quantity for each size separately. We can combine them into one quotation and arrange production together.
Can I get free samples?
If suitable stock samples are available, we can discuss providing stock pieces for evaluation.
Customized samples may involve production or tooling cost depending on the product.
Courier cost is normally discussed separately.
Do you support OEM?
Yes.
Most customized projects are produced according to customer drawings, samples or technical requirements.
Can you make our logo?
Custom labels and packaging logos are available.
Whether a logo can be made directly on the magnet depends on magnet size, coating and marking method.
